R1200RT Bodywork Removal

The following is a partial description of the bodywork removal. I missed the shot with the lower bodywork removed.

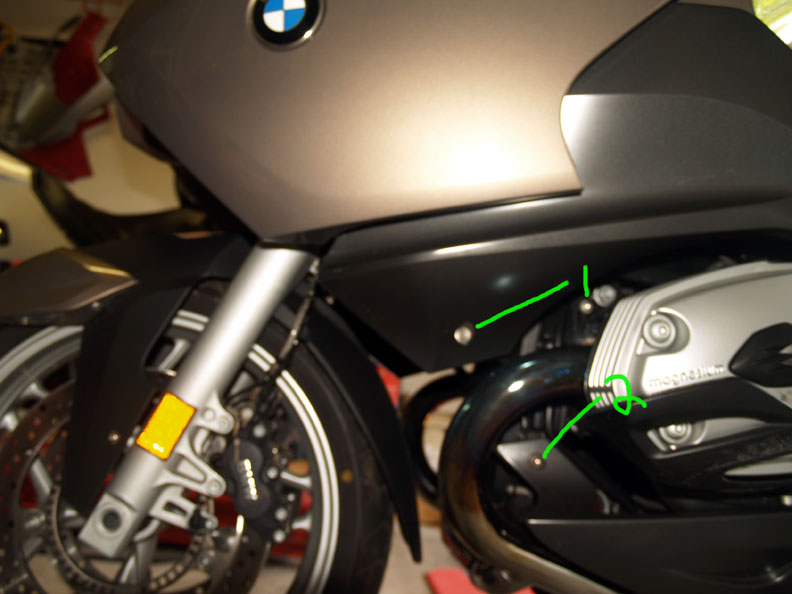

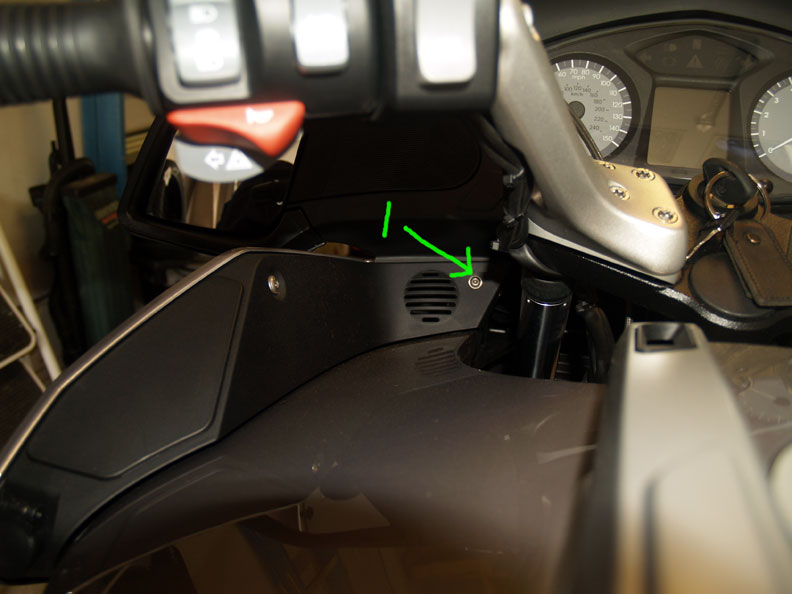

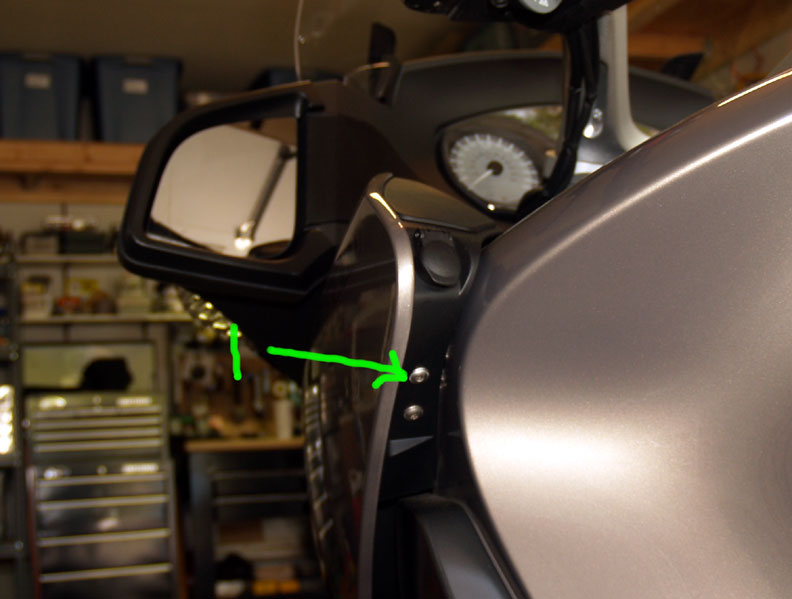

1 and 2 are the upper fairing front screws, T-25

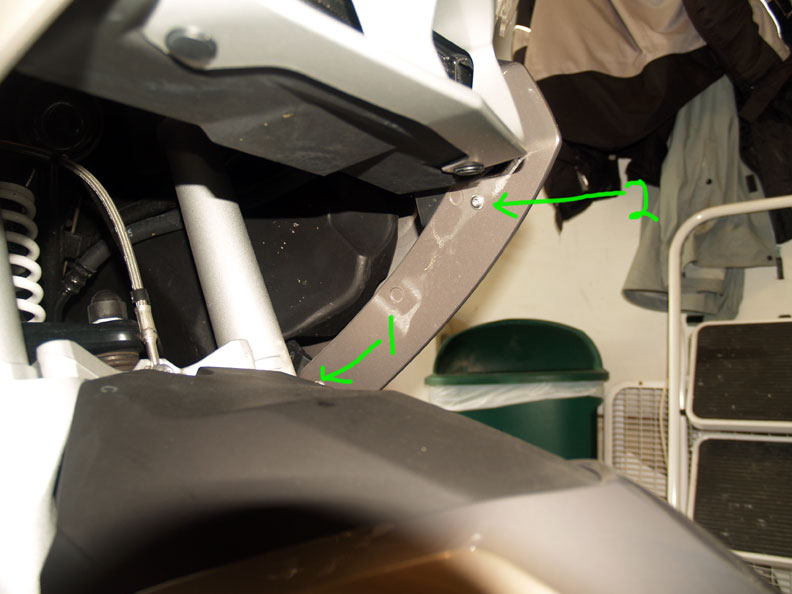

Inner upper fairing screws, T-25, one on each side.
Upper fairing screws, T-25 one on each side.

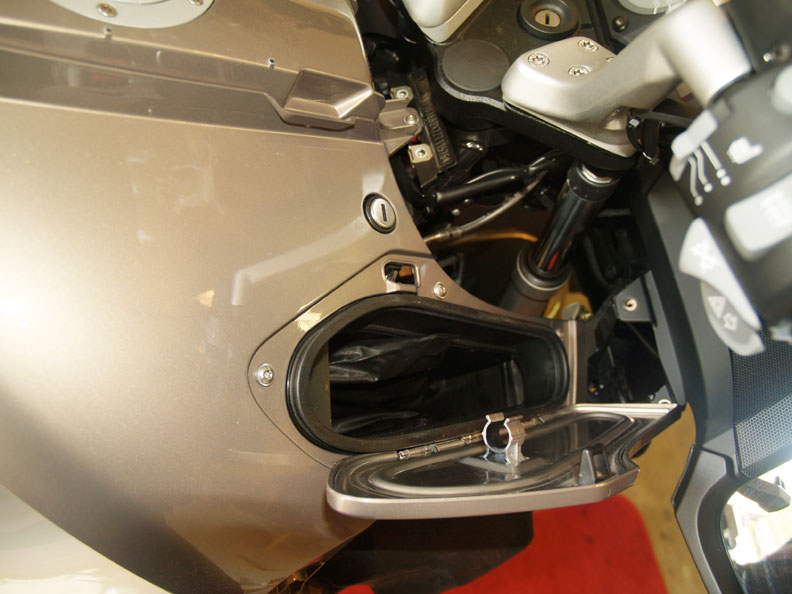

Glove Box top screws, 3.

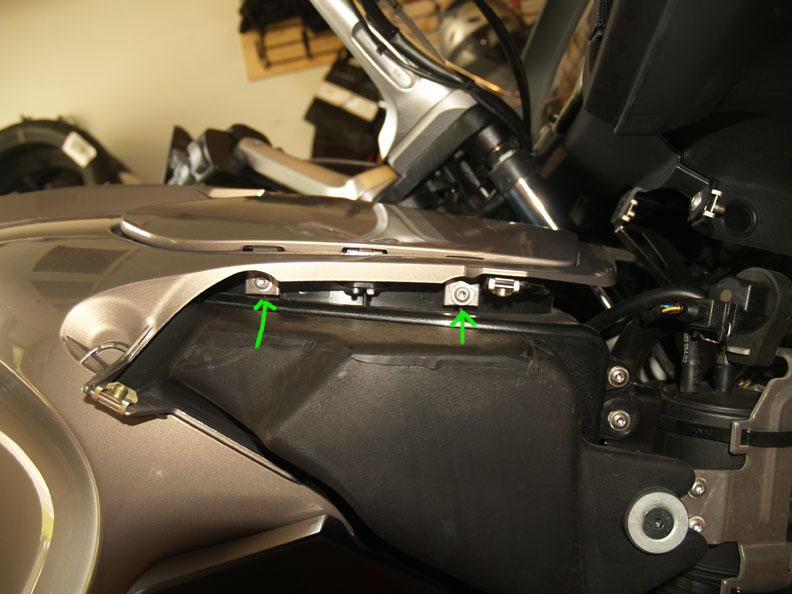

Glove Box top screws, 2, underside.

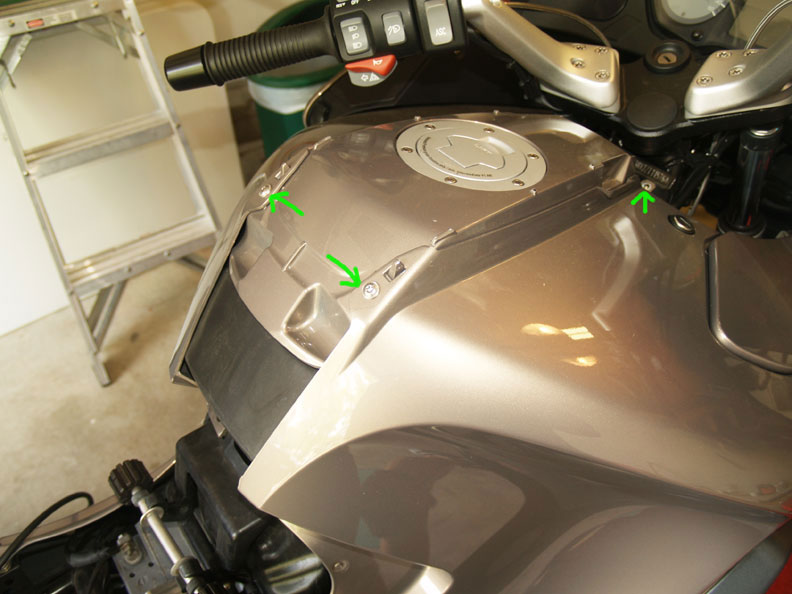

Tank bag top screws, 4, large screws.

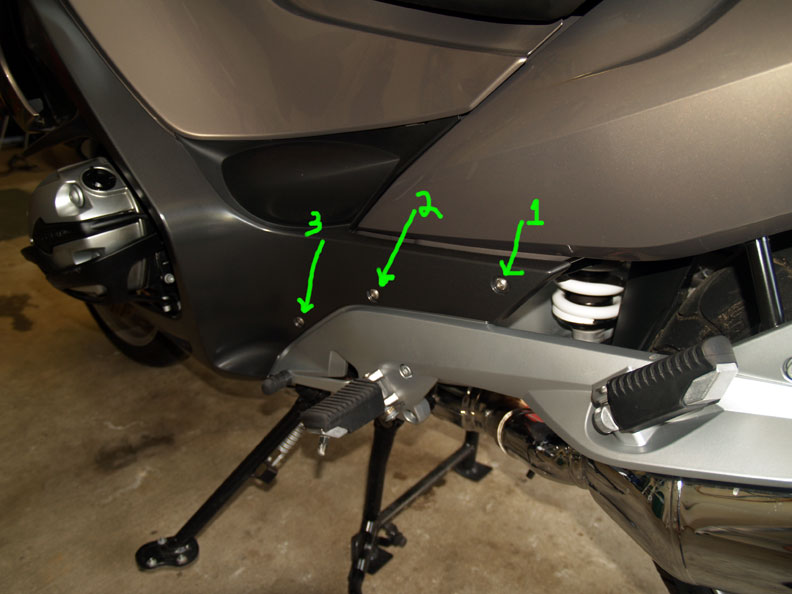

Lower screws, T-25.
Lower screws, T-27.

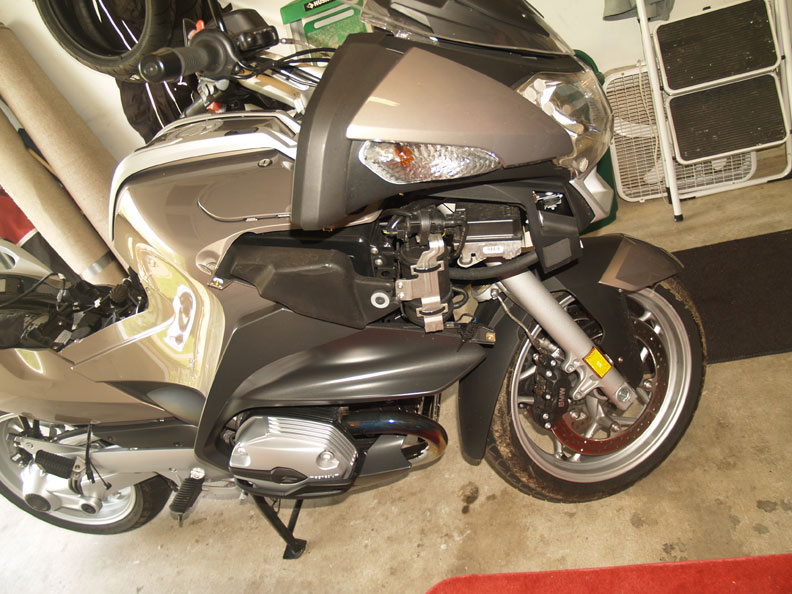

Forward fairing removed.

The lower fairing comes next, the the upper fairing.

I will add more pictures as they become available.
