JVB Productions

This BMW R1300 video covers all of the following bikes and is designed to allow you to complete all the requirements for maintaining your bike to BMW specifications. It is designed for the BMW R1300 series (Arrowhead) 2024 and newer motorcycles* though it is centered around the R1300GS since that is what I had available for filming.

*Covered Motorcycle(s):

2024 to present R1300GS
2024 to present R1300GS/GSA/RT/R**
2024 to present R1300RS

Note: Special Tools are required for valve shim changes and Cam Timing setting.

Note: I will be adding a tutorial on removing the body panels on the R1300 series motorcycles to the Updates section, and below, in the future as new models become available to me.

**The R1300R and R1300RS have conventional forks which are not covered in this video. All other service items are the same. I will make YouTube videos to cover these as the bikes become available to me.

�

R1300 Arrowhead Download Chapter timing:

Crash Bar Removal GS/GSA (0:37)
Bash Plate Removal GS/GSA (2:26)
Oil change, engine, with filter (5:19)
Bash Plate Installation GS/GSA (13:40)

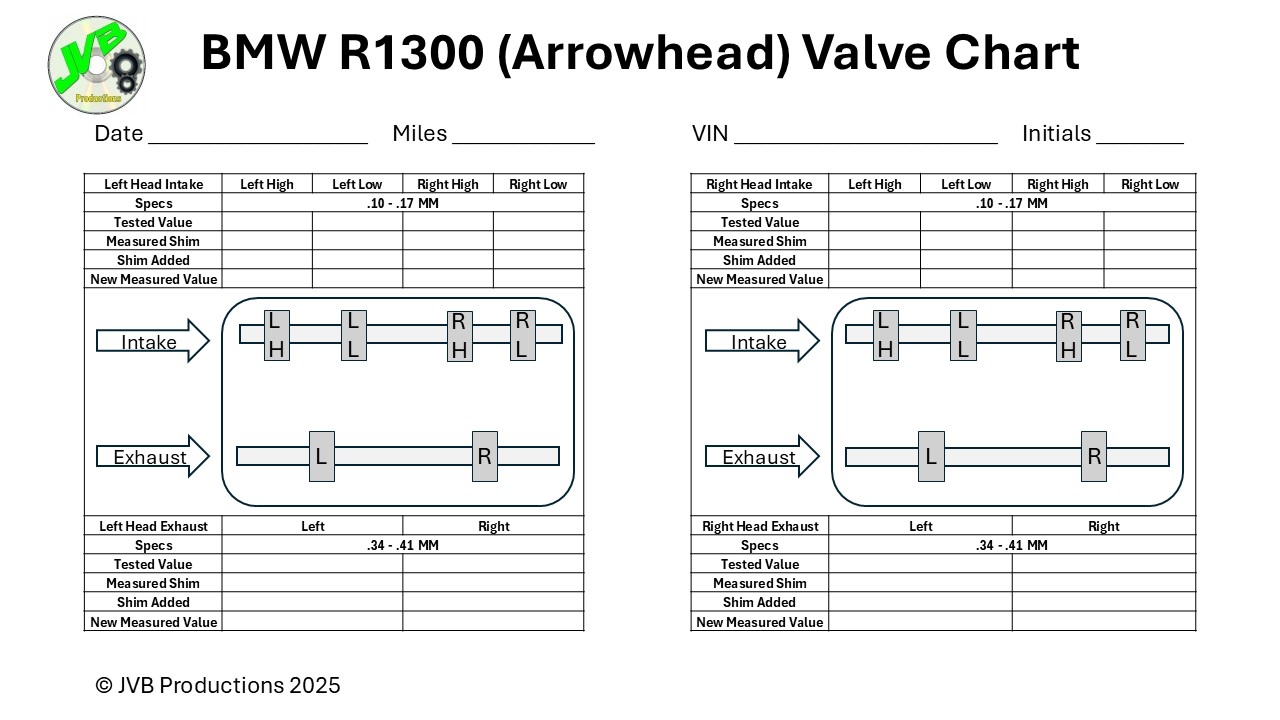

Checking and adjusting valve clearance (17:56)
Cam Timing set (35:32)
Valve Cover reassembly (39:35)
Final Drive Oil change (46:20)
FD and Driveshaft Spline Lube (51:28)
Changing brake fluid, front/rear brakes (59:16)
Misc Checks (1:20:44)
Visual inspection of hydraulic clutch system (1:21:01)
Centerstand Pivot Lube (1:22:05)
Sidestand Pivot Lube (1:22:19)
Flex Element Inspection (1:22:39)
Replace air filter cartridge (1:23:04)
GS911 Setting service-due date and service countdown distance and more (1:30:14)

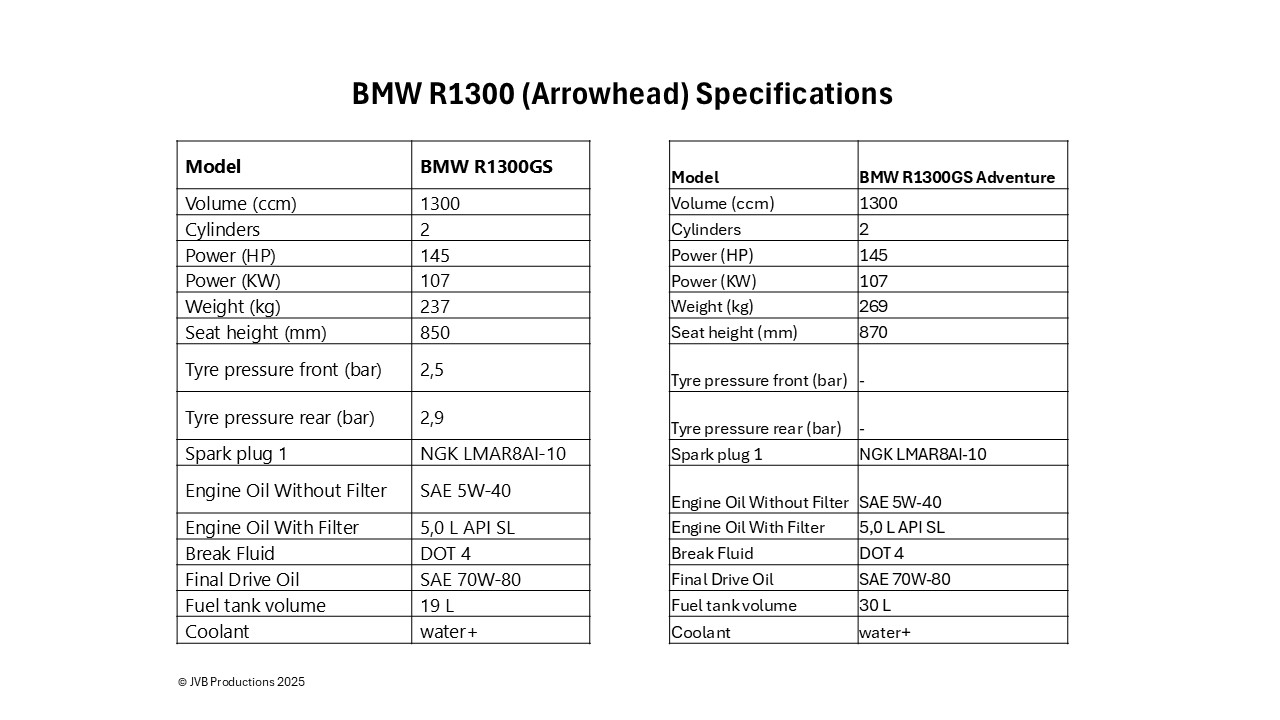

I have included the necessary tools, supplies and torque specifications to complete all the listed services. I have also added many helpful tips and notes to make this as simple as possible.

A typical 6K service will run you around $300-350, depending on location. The brake bleed alone can run as high as $300.

What I did not include, since I felt they were self-explanatory, was how to check your oil, tires and lights.

The video should assist those of you on the fence in deciding you CAN do these expensive services yourself, and save money for those all-important farkles, and gas for riding! It is also an excellent resource for those looking to see what the dealer does during a typical service.

The videos are available for $40 for instant download.

The will accept Paypal and credit cards.

The video was recorded in the highest quality possible. It plays well, and clearly, on a standard video player. It is formatted in MP4 format that usually plays without issue. However, if your computer does not display the video correctly, some sections upside down, or other issues, you may need to download a player that works correctly with this format. I have found that in 100% of these cases the VLC Player fixes the issue, and it is a free and safe download. Here is a link for it: https://www.videolan.org/vlc/index.html

Caution: Although every effort was made to ensure the accuracy of the information contained in this Video it was primarily designed to enhance your knowledge of the BMW R1300 "Arrowhead" series motorcycle. As such, it is not meant to replace the maintenance manual or to supply complete information about each procedure covered. Any damage done to a motorcycle or personal injury resulting from the use of the Video is solely the responsibility of the user and not the maker or seller of the Video. Please use the Video as a reference only. Performing motorcycle maintenance can be dangerous so please take the proper precautions when attempting to perform your own service work. If you do not have the proper tools or mechanical ability to do this type of work it is best left to the professionals at your BMW Service Center.

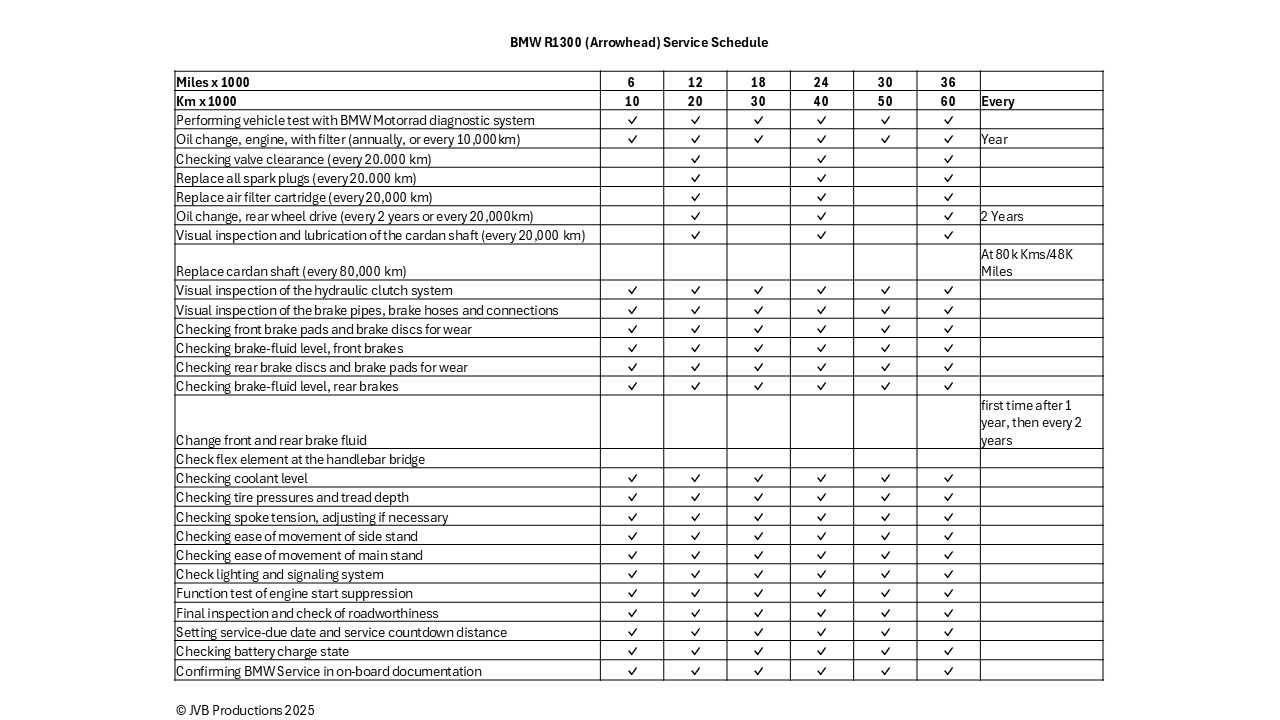

Double click on the schedule link below for printable version, complete with run-in and full schedules suitable for printing.
